Air conditioning for rolling stock: Effective microclimate in the driver's cab

This climate system is specially designed to ensure stable and comfortable working conditions for locomotive crews. Thanks to full automation, the air conditioner independently maintains the set temperature, allowing the driver to concentrate on driving the train.

Key advantages:

· High reliability: Monoblock design and IP65 protection level guarantee stable operation in difficult conditions.

· Vibration resistance: Meets the 3M10 standard for mechanical operating conditions (EN IEC 60721-3-3).

· Energy efficiency: Consumption class A with a high cooling capacity of 4.0 kW.

· Professional air purification: Blowing capacity of 900 m³/h ensures fast air circulation and filtration.

Technical parameters:

Operational limits:

The system demonstrates stable operation in a wide temperature range:

· Maximum cooling: works effectively at an outdoor temperature of up to +43°C.

· Minimum threshold: the start of the cooling mode is possible at an outdoor temperature of -5°C.

System equipment:

The standard delivery includes:

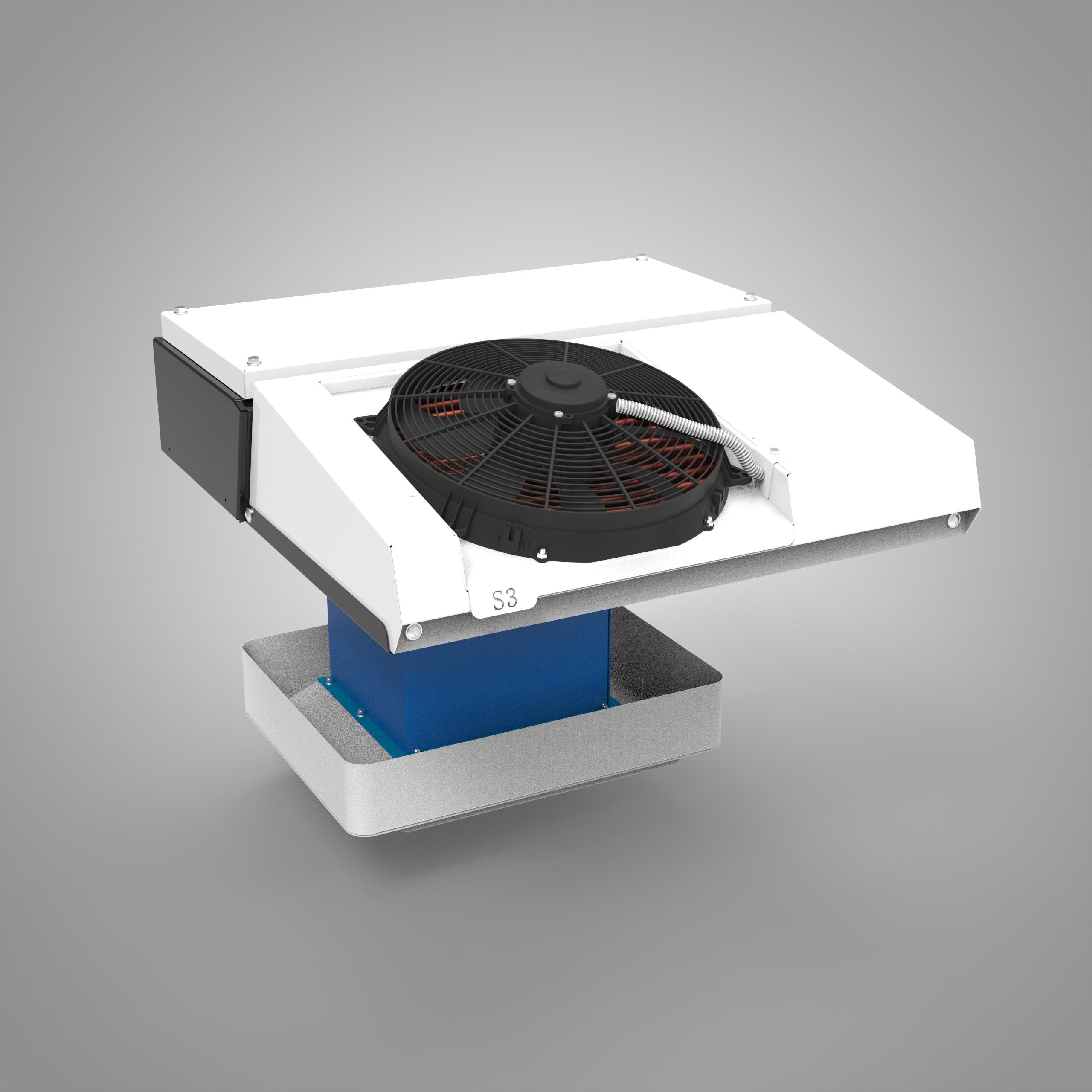

1. Outdoor monoblock (roof type).

2. Ergonomic control panel.

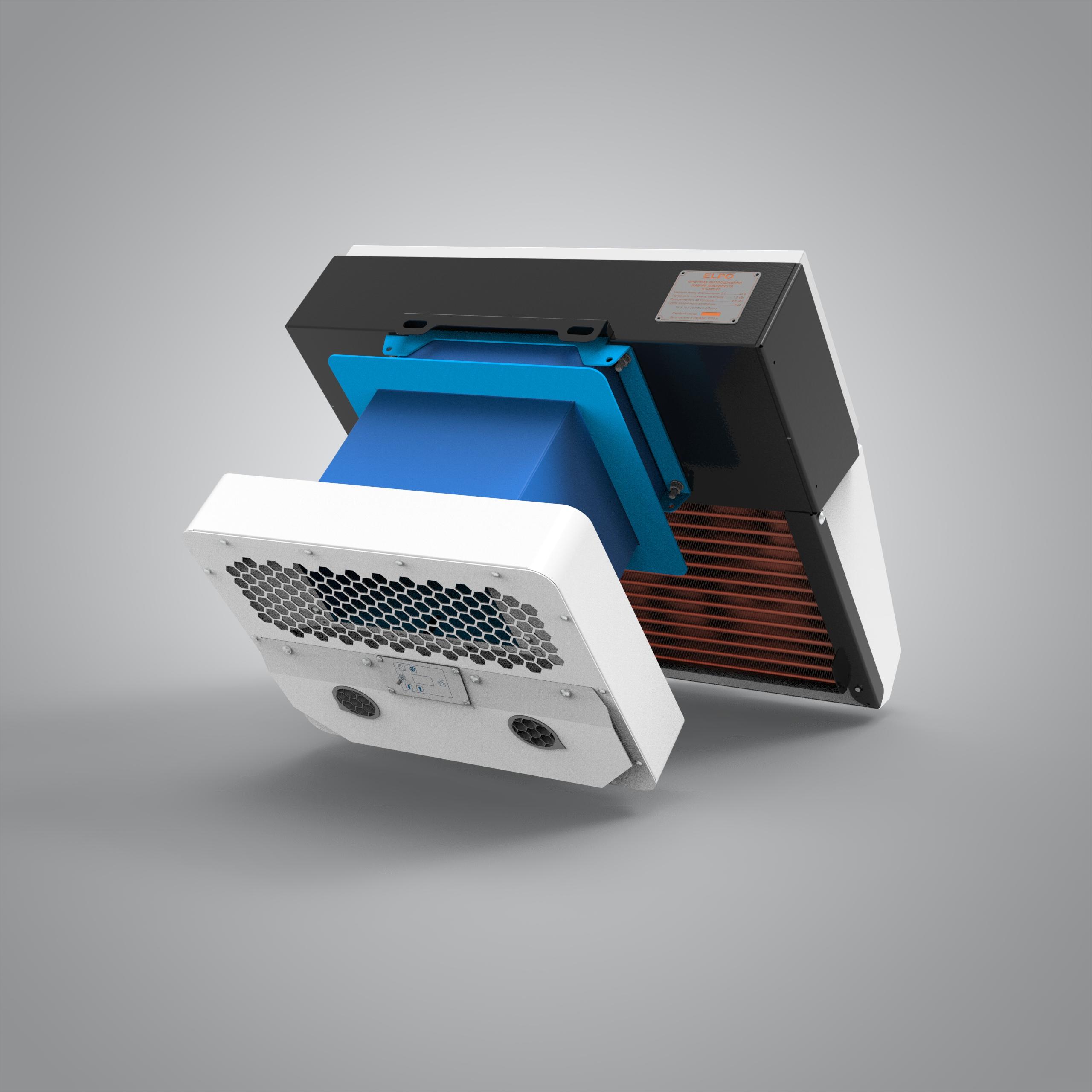

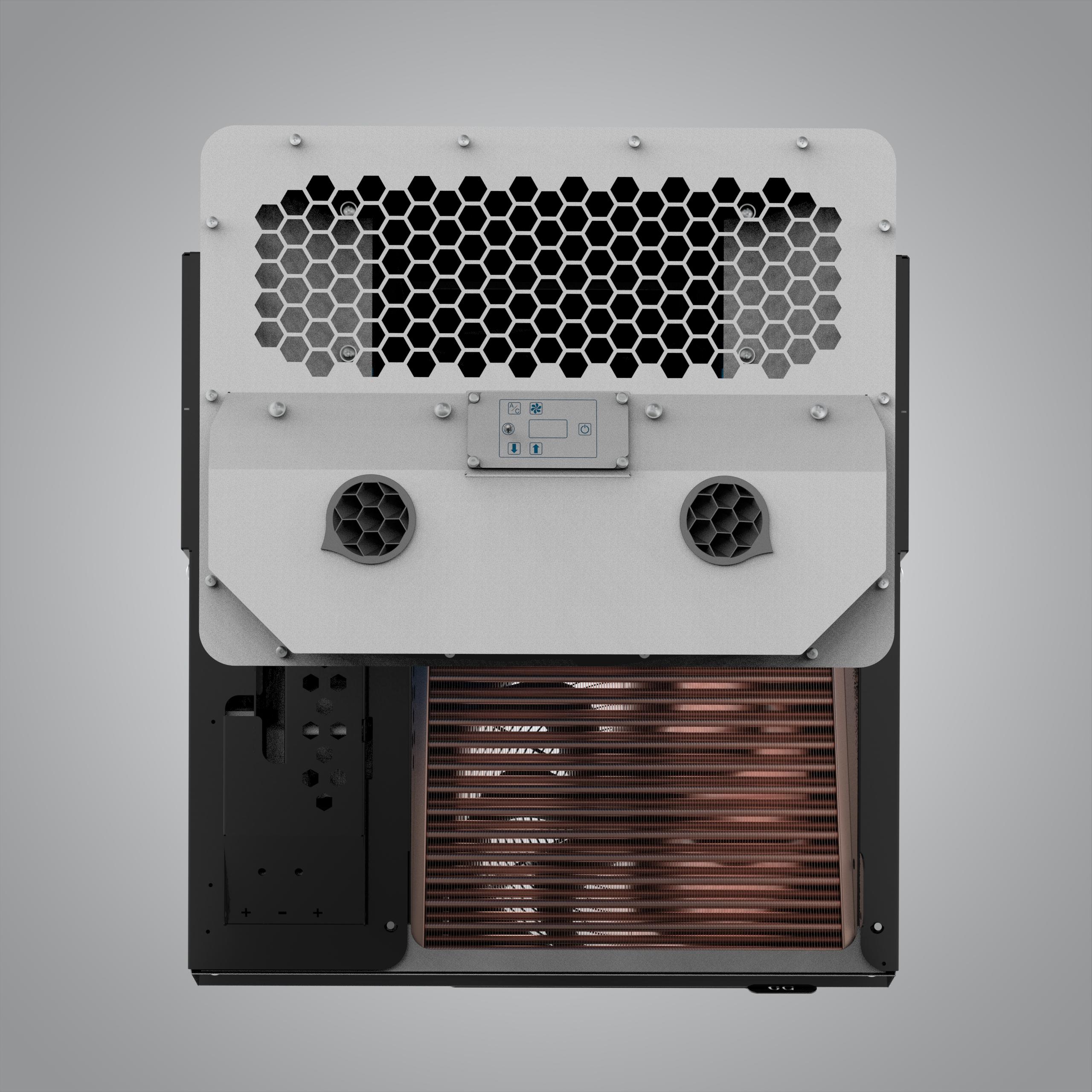

3. Indoor unit with air filtration system.

4. Air duct and high-precision temperature sensor

5. Voltage converter (options for 24V/50V, 24V/75V, 24V/110V, 24V/220V).
